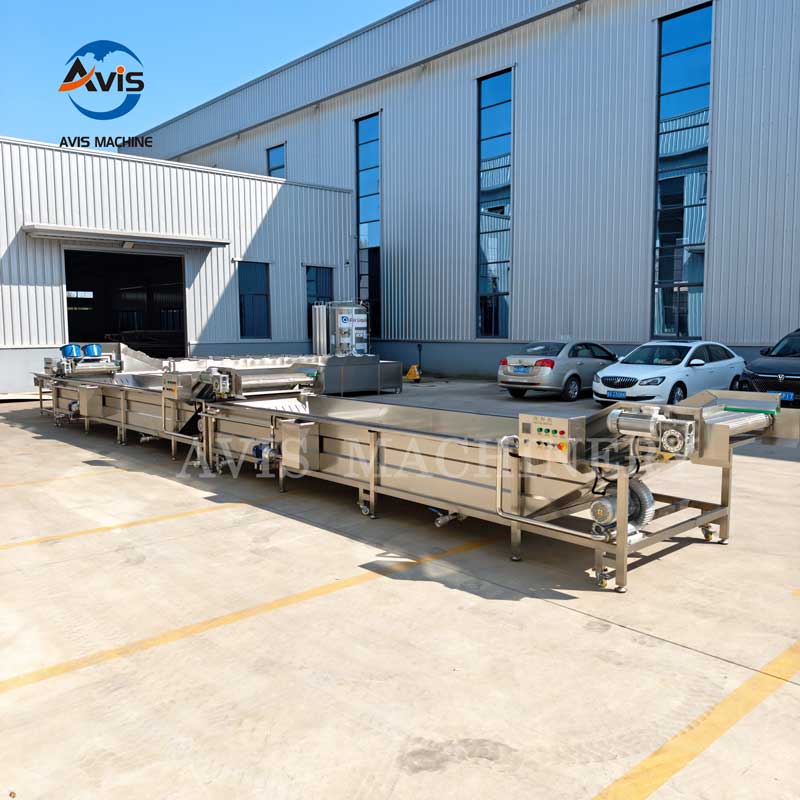

Industrial blanching and cooling production line for vegetables, meat and seafood. Includes steam blancher, lifting conveyor and two-stage cooling machines with 304 stainless steel construction.
The Blanching and Cooling Production Line is an integrated food processing system designed for continuous blanching, pre-cooking and rapid cooling of vegetables, fruits, meat, seafood and other food products.
The complete line consists of:
Lifting Machine → Steam Blanching Machine → Cooling Machine 1 → Cooling Machine 2
The equipment is manufactured primarily from 304 food-grade stainless steel, providing good corrosion resistance, hygienic performance and easy cleaning for modern food processing plants.
 |
 |
 |
 |
 |
 |
In vegetable and food processing, proper blanching followed by rapid cooling is important for maintaining product quality and improving processing efficiency.
This industrial blanching and cooling line combines a steam-heated blanching section, lifting conveyor and two continuous cooling sections into one integrated production system.
The material is continuously conveyed through the equipment. During blanching, steam heating provides controlled thermal treatment. After blanching, the product enters the first and second cooling machines for continuous temperature reduction before subsequent processing such as:
The two-stage cooling system helps provide a longer cooling path and can be configured according to different product capacities and processing requirements.

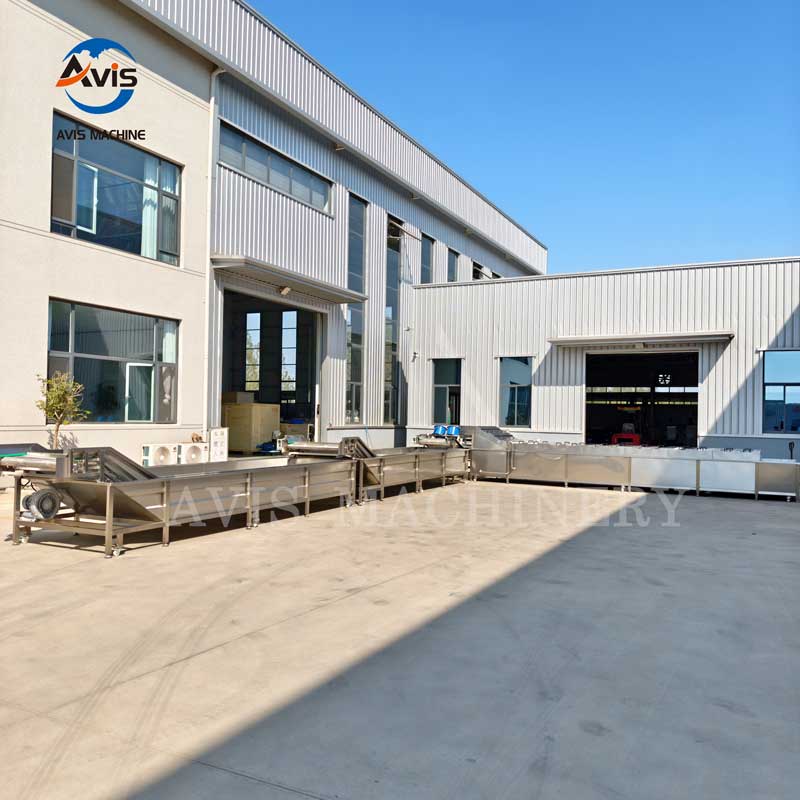

Raw Material → Lifting → Steam Blanching → First Cooling → Second Cooling → Next Process
Raw Materials
↓
Lifting Machine
↓
Steam Blanching
↓
First Cooling
↓
Second Cooling
↓
Draining / Conveying
↓
Freezing, Cutting or Packaging
| No. | Equipment | Function |
|---|---|---|
| 1 | Lifting Machine | Lifts and continuously feeds raw materials |
| 2 | Steam Blanching Machine | Continuous steam blanching / pre-cooking |
| 3 | Cooling Machine | First-stage rapid cooling |
| 4 | Cooling Machine | Second-stage cooling |

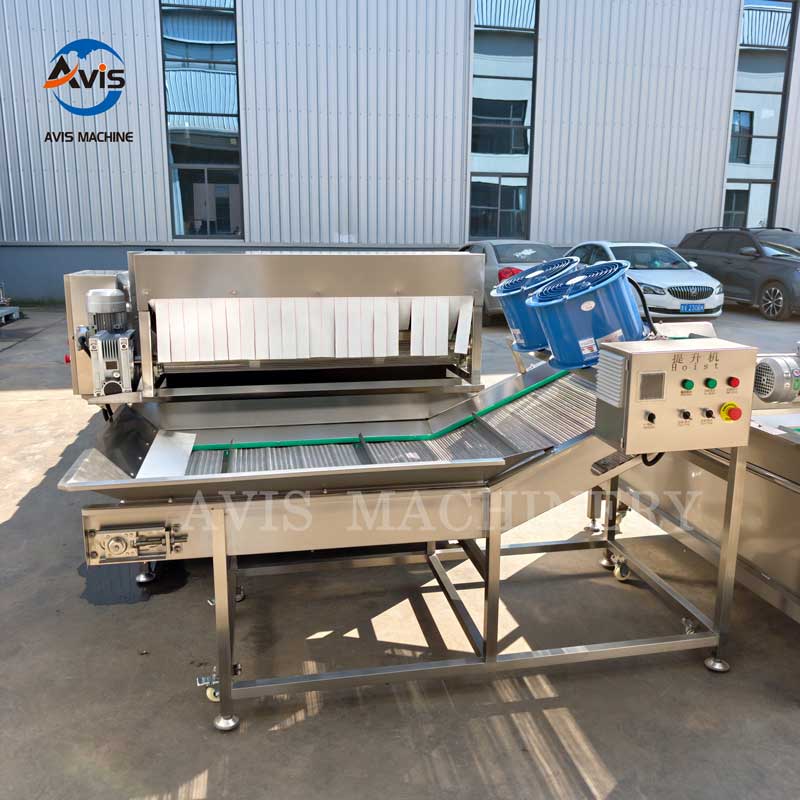

Stainless Steel Food Processing Lifting Machine
The lifting machine is installed at the front of the production line and is used to continuously transfer raw materials into the blanching machine.
It is designed with a 1200 mm wide conveyor belt and stainless steel construction for food-processing applications.
| Parameter | Specification |
|---|---|
| Power | 0.75 kW |
| Belt Width | 1200 mm |
| Centrifugal Fans | 0.75 kW × 2 |
| Speed | 8–40 r/min |
| Belt | Stainless steel mesh belt |
| Material | 304 Stainless Steel |
| Dimensions | 2000 × 1400 × 1500 mm |
| Configuration | According to actual production requirements |

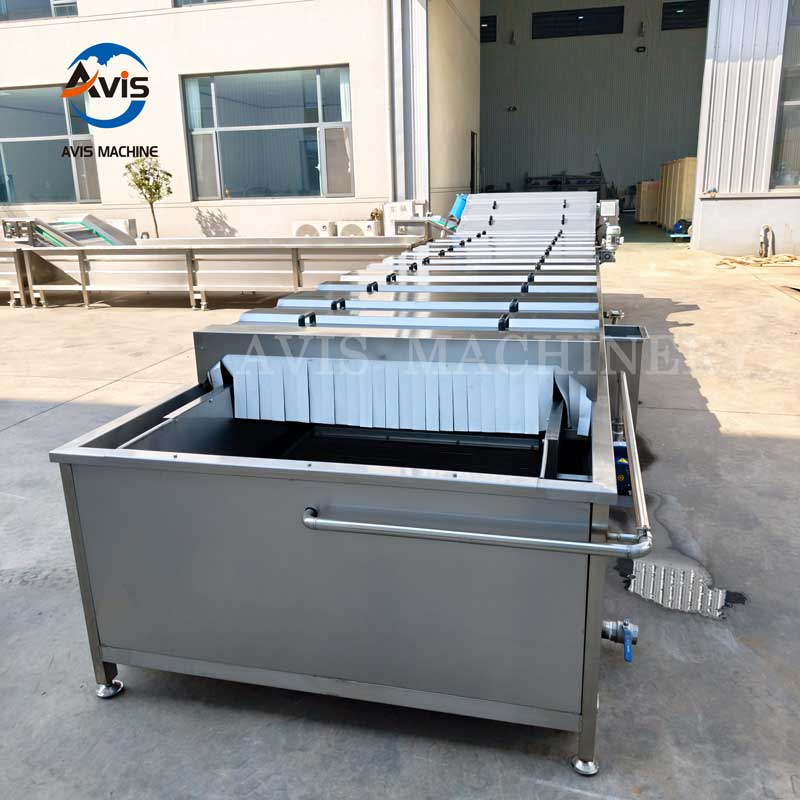

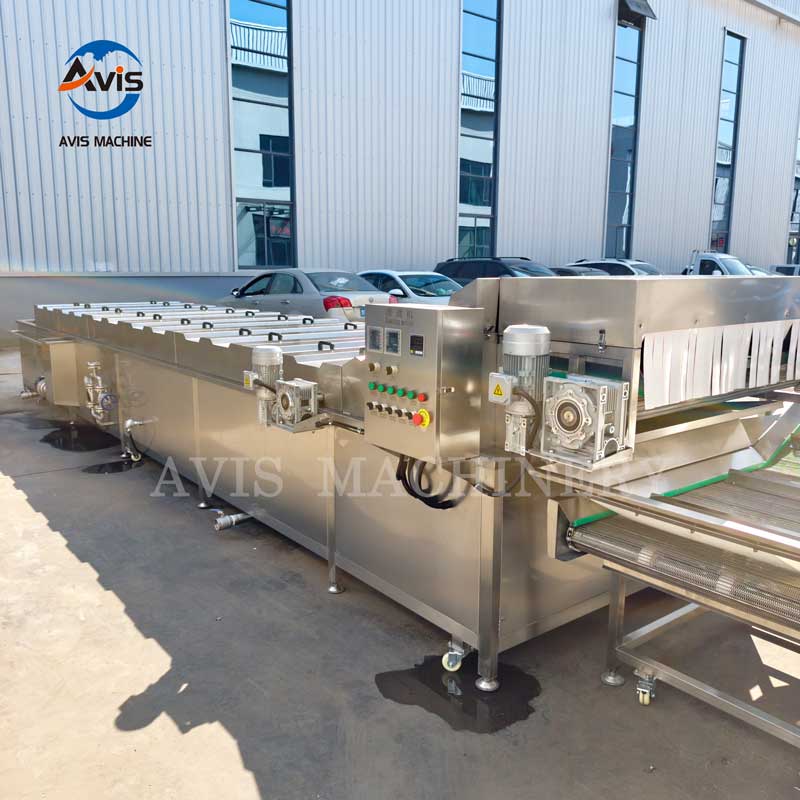

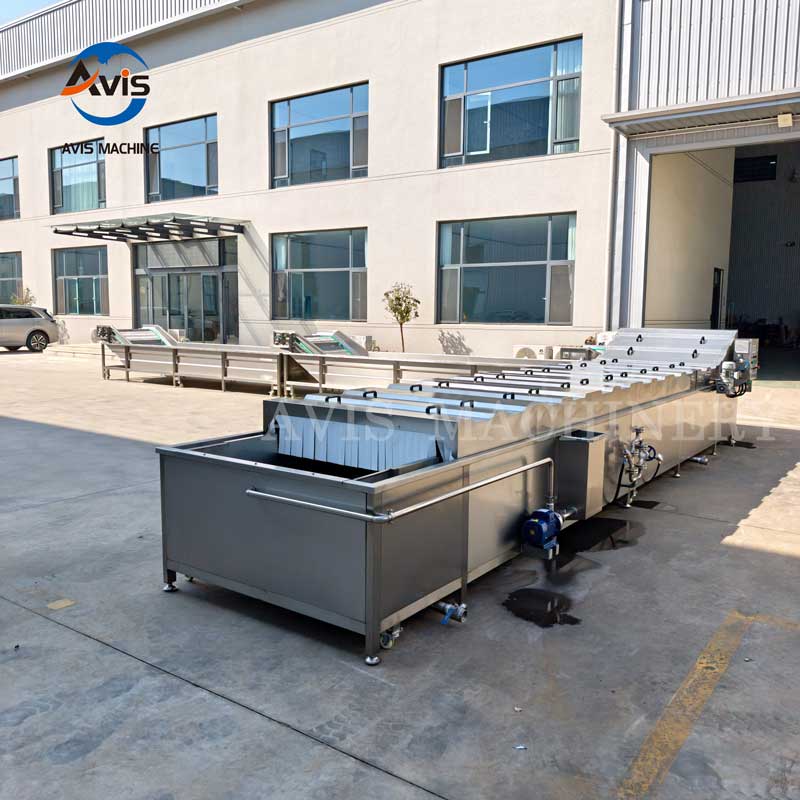

The steam blanching machine is the core thermal-processing section of the line.
It uses steam heating to provide continuous and uniform heat treatment. The stainless steel mesh belt transports the product through the blanching chamber.
A pressure belt can help keep the product within the desired conveying path during processing.

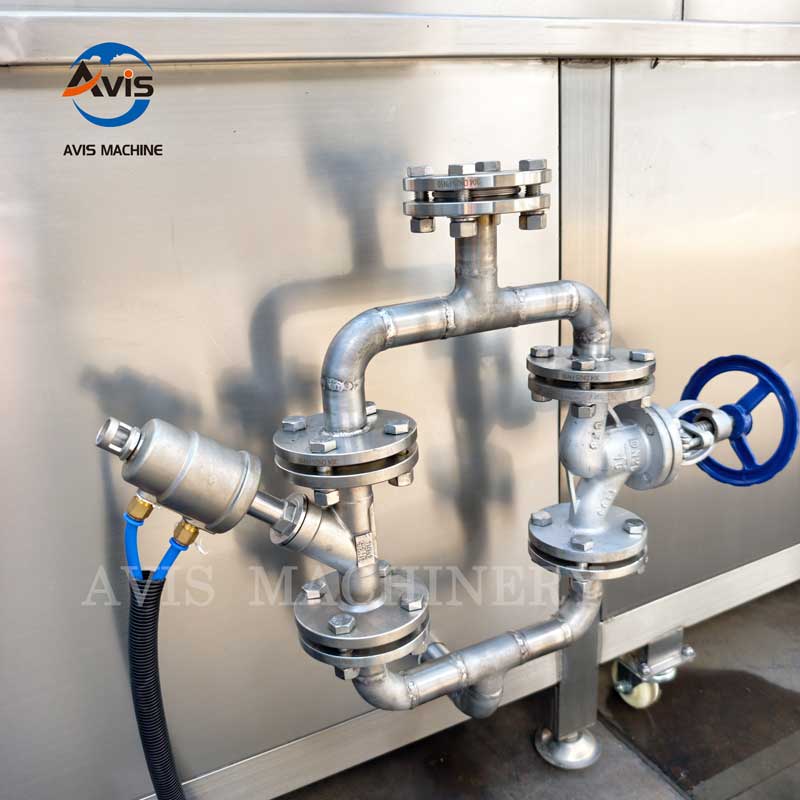

Steam Heating
Steam is used as the heating medium for continuous thermal processing.
Long Effective Processing Length
The machine provides an effective processing length of approximately 8000 mm, providing sufficient residence time for different food products.
Wide Processing Belt
The effective width is approximately 1200 mm, making the machine suitable for continuous industrial food processing.
Bubbling & Water Circulation
The equipment is equipped with an air pump and bubbling system, together with a filtered water tank and front water pump.
304 Stainless Steel
Food-contact and main structural components are constructed from 304 stainless steel.
| Parameter | Specification |
|---|---|
| Heating Method | Steam Heating |
| Effective Length | 8000 mm |
| Effective Width | 1200 mm |
| Conveyor Belt | Stainless Steel Mesh Belt |
| Pressure Belt | Equipped |
| Air System | Air Pump |
| Bubbling System | Equipped |
| Water System | Filtered Water Tank + Front Water Pump |
| Main Material | 304 Stainless Steel |
| Dimensions | 8000 × 1450 × 1200 mm |
| Configuration | According to actual production requirements |

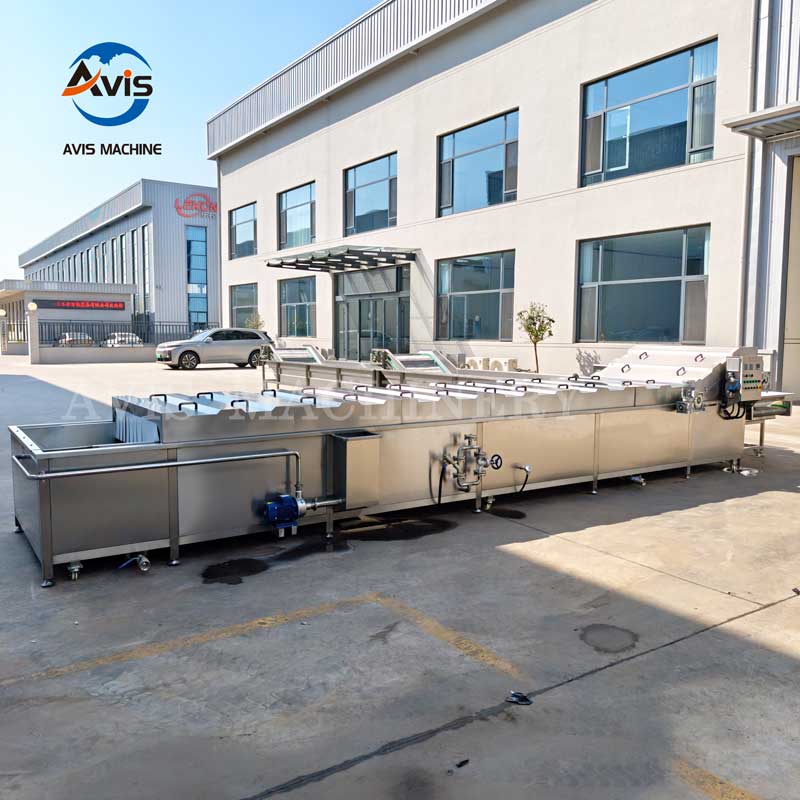

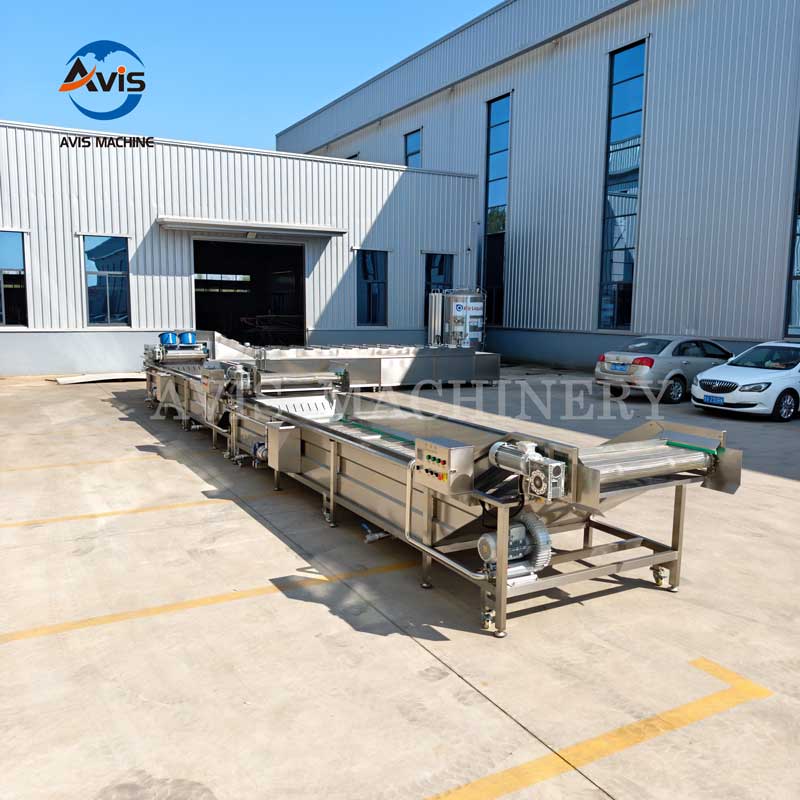

After blanching, the processed products enter the first cooling machine and then the second cooling machine.
Using two cooling machines provides an extended cooling process and can help reduce product temperature before the next processing stage.
Both cooling machines have similar configurations.
| Parameter | Specification |
|---|---|
| Quantity | 2 Units |
| Power | 7.4 kW / unit |
| Effective Length | 6000 mm |
| Effective Width | 1200 mm |
| Conveyor Belt | Stainless Steel Mesh Belt |
| Air System | Air Pump |
| Bubbling System | Equipped |
| Water System | Filtered Water Tank + Front Water Pump |
| Material | 304 Stainless Steel |
| Dimensions | 6000 × 1450 × 2500 mm / unit |
| Configuration | According to actual production requirements |
| No. | Machine | Main Specification |
|---|---|---|
| 1 | Lifting Machine | 0.75 kW |
| Belt Width: 1200 mm | ||
| Centrifugal Fan: 0.75 kW × 2 | ||
| Speed: 8–40 r/min | ||
| 304 Stainless Steel | ||
| 2000 × 1400 × 1500 mm | ||
| 2 | Steam Blanching Machine | Steam Heating |
| Effective Length: 8000 mm | ||
| Effective Width: 1200 mm | ||
| Stainless Steel Mesh Belt | ||
| Pressure Belt | ||
| Air Pump + Bubbling System | ||
| Filtered Water Tank + Front Water Pump | ||
| 304 Stainless Steel | ||
| 8000 × 1450 × 1200 mm | ||
| 3 | Cooling Machine | 7.4 kW |
| Effective Length: 6000 mm | ||
| Effective Width: 1200 mm | ||
| Stainless Steel Mesh Belt | ||
| Air Pump + Bubbling System | ||
| Filtered Water Tank + Front Water Pump | ||
| 304 Stainless Steel | ||
| 6000 × 1450 × 2500 mm | ||
| 4 | Cooling Machine | 7.4 kW |
| Effective Length: 6000 mm | ||
| Effective Width: 1200 mm | ||
| Stainless Steel Mesh Belt | ||
| Air Pump + Bubbling System | ||
| Filtered Water Tank + Front Water Pump | ||
| 304 Stainless Steel | ||
| 6000 × 1450 × 2500 mm |
Note: Final equipment dimensions and configuration can be adjusted according to product characteristics, processing capacity and customer’s factory layout.
The equipment uses continuous mesh-belt conveying instead of batch processing, making it suitable for industrial production lines.
Blanching and cooling equipment are connected into one production line, reducing manual handling between processing stages.
Two cooling machines provide an extended cooling process and allow the cooling section to be configured according to product requirements.
304 stainless steel is used for the main machine structure, providing corrosion resistance and convenient cleaning.
The line can be connected with additional equipment such as:
 |
 |
 |
Suitable for:
Potential applications include:
The equipment can be used for certain meat products requiring:
Pre-cooking → Cooling → Further Processing
Suitable for selected seafood processing applications such as:
Actual processing parameters should be selected according to the characteristics of each product.
For frozen vegetable production, this line can be positioned between the washing/cutting section and freezing section.
Vegetable Receiving
→ Washing
→ Sorting
→ Cutting
→ Blanching
→ Cooling
→ Dewatering
→ IQF Freezing
→ Packaging
The integrated design helps reduce manual product transfer and supports continuous processing.
The main equipment is constructed from 304 stainless steel, suitable for demanding food-processing environments.
The open conveyor structure and stainless steel surfaces facilitate daily cleaning and sanitation.
The mesh-belt conveying system allows materials to move continuously through blanching and cooling sections.
The stainless steel mesh belt provides a stable conveying surface for various food materials.
Machine dimensions, processing length, belt width and line configuration can be customized according to:
A blanching and cooling production line is a continuous food-processing system that combines thermal blanching or pre-cooking with subsequent cooling. It is commonly used for vegetables and can also be configured for selected meat, seafood and fruit-processing applications.
This machine uses steam heating for continuous blanching.
Two cooling machines provide a longer cooling path and allow the product to undergo continuous multi-stage cooling after blanching.
The main machines use 304 stainless steel, which provides corrosion resistance and is suitable for food-processing environments.
The line can be configured for vegetables such as broccoli, green beans, peas, carrots and other products. It can also be adapted for certain fruit, meat and seafood applications according to product characteristics.
Yes. Equipment dimensions, processing length, belt width and configuration can be customized according to the customer’s product, capacity and factory layout.
Yes. It can be integrated with washing, cutting, dewatering, drying, freezing and packaging equipment to create a complete automated processing line.
