Vacuum Oil Filter Edible Oil Filter Oil Residue Separator Deep-Frying Food Production Line Machinery

Vacuum Oil Filter Edible Oil Filter Oil Residue Separator Deep-Frying Food Production Line Machinery

Type Of Machine

Oil Filter Machine

For Food Type

Cooking Oil, Fried Foods

Automatic

Automatic

Voltage

220V/380V

Customized

Customized

Material

304 Stainless Steel

Origin

Shandong China

Production Capacity

30 Liters Per/Minute

Heating Method

Electricity

Descriptions

Vacuum Oil Filter Edible Oil Filter Oil Residue Separator Deep-Frying Food Production Line Machinery Specification

 Name

 Model  Quantity  Place Of Production

 Material Quality

 Main Body

Ly-650 1 Set Avis Machinery

304

 Oil Pump

1.5Kw 1 Set

Porto



 Gasket Ring

  1 Piece Avis Machinery

 Silica Gel

 Control Circuit Apparatus

  1 Set Chint

 Filter Paper

  100 Copies



 Valve



Two



Vacuum Oil Filter Edible Oil Filter Oil Residue Separator Deep-Frying Food Production Line Machinery IntroduceVacuum Oil Filter Edible Oil Filter Oil Residue Separator Deep-Frying Food Production Line Machinery

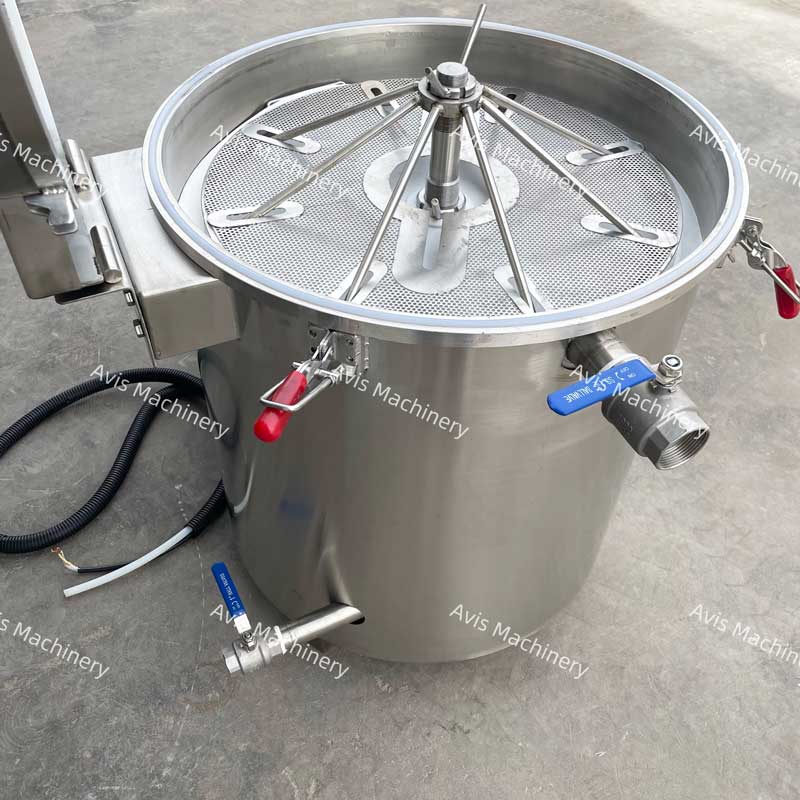

This Frying Oil Filter Machine Consists Of a Filtering Chamber, An Oil Pump, And An Electrical Control Device. The Filter Top Cover Is Equipped With a Ventilation Valve. There Are Three Filtering Layers In The Filtering Chamber, Consisting Of a Filter Screen, Oil Guide Ring, Partition Ring, Pressure Screen Frame, Filter Paper, Gasket, Etc., Which Are Respectively Fitted On The Central Pipe Valve And Locked By Two Fastening Nuts Of Different Sizes, Forming a Parallel Filtering System For The Three Filtering Layers To Independently Filter Frying Oil At The Same Time.
The Oil Pump Has a Flow Rate Of 63 Liters Per Minute, An Average Oil Filtration Rate Of 30 Liters Per Minute, a Discharge Pressure Of 0.5 Mpa, An Electric Motor Power Of 1.5 Kilowatts, And a Speed Of 1420 Revolutions Per Minute. This Machine Uses a 380V Three-Phase 50Hz Power Supply. The Top Cover Of The Filter Is Equipped With a Vacuum Gauge, Which Displays The Vacuum Level Inside The Filter Chamber. The Filter Machine Box Is Equipped With a Vacuum Digital Display To Display The Vacuum Degree Between The Filter Chamber And The Oil Pump Inlet, Objectively Reflecting The Blockage Of The Filter Layer. The More Severe The Blockage, The Higher The Vacuum Level. This Vacuum Digital Display Is Also Used To Set The Vacuum Level Allowed By The User. When Reaching Or Exceeding This Vacuum Level, An Alarm Signal Can Be Issued And The Machine Will Automatically Shut Down.

Vacuum Oil Filter Edible Oil Filter Oil Residue Separator Deep-Frying Food Production Line Machinery Effect

Vacuum Oil Filter Edible Oil Filter Oil Residue Separator Deep-Frying Food Production Line Machinery Vacuum Oil Filter Edible Oil Filter Oil Residue Separator Deep-Frying Food Production Line Machinery Vacuum Oil Filter Edible Oil Filter Oil Residue Separator Deep-Frying Food Production Line Machinery

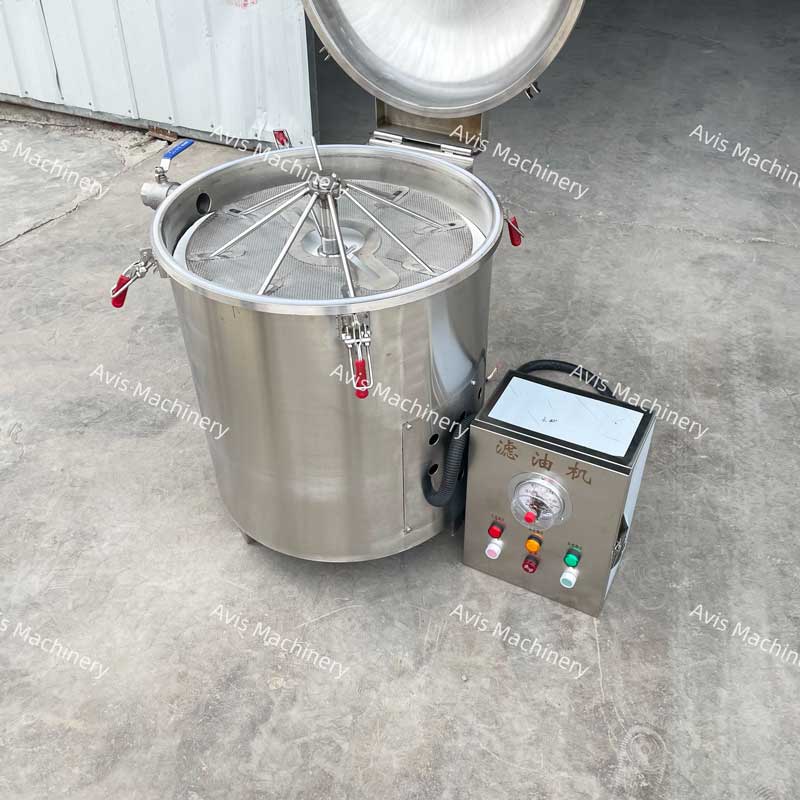

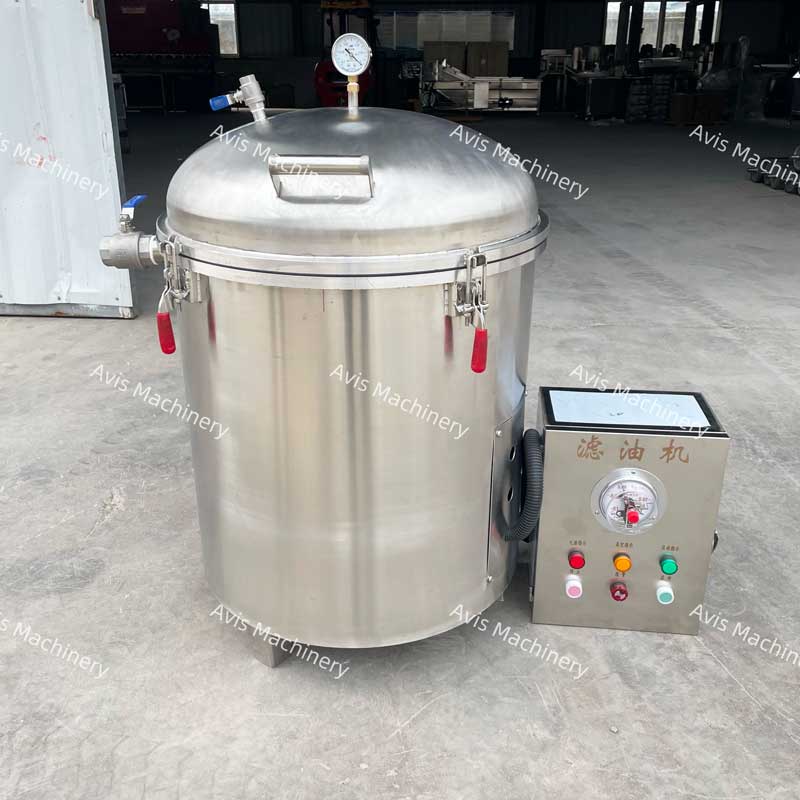

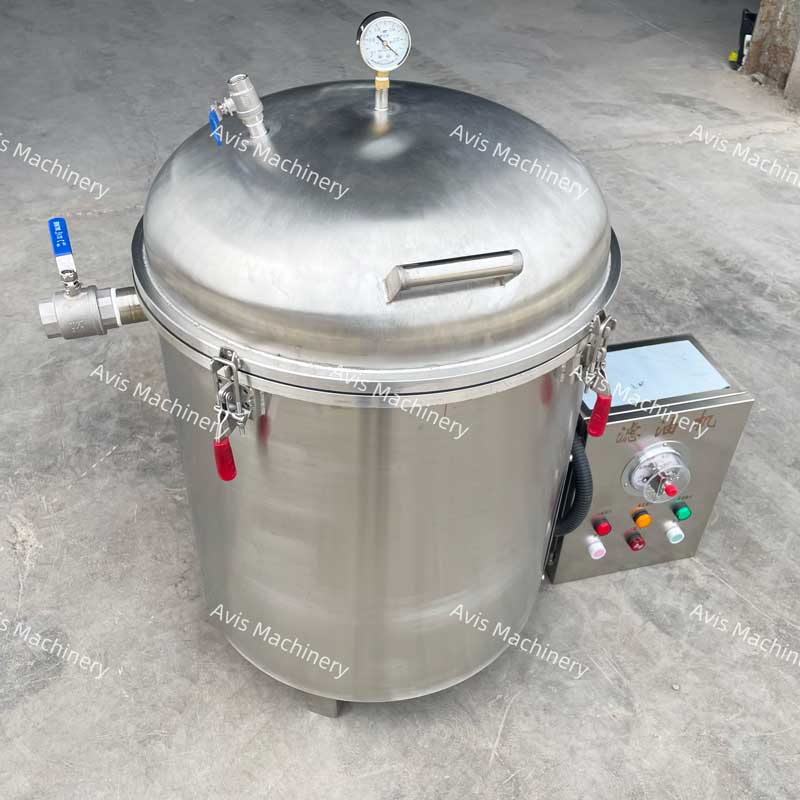

Vacuum Oil Filter Edible Oil Filter Oil Residue Separator Deep-Frying Food Production Line Machinery Image Display

Vacuum Oil Filter Edible Oil Filter Oil Residue Separator Deep-Frying Food Production Line MachineryVacuum Oil Filter Edible Oil Filter Oil Residue Separator Deep-Frying Food Production Line MachineryVacuum Oil Filter Edible Oil Filter Oil Residue Separator Deep-Frying Food Production Line MachineryVacuum Oil Filter Edible Oil Filter Oil Residue Separator Deep-Frying Food Production Line MachineryVacuum Oil Filter Edible Oil Filter Oil Residue Separator Deep-Frying Food Production Line MachineryVacuum Oil Filter Edible Oil Filter Oil Residue Separator Deep-Frying Food Production Line Machinery
