| Type of Machine | Sterilization Pot |
| For Food Type | Canned Food, Soft-Packaged Food, Bottled/Packaged Sauces, Dairy Products/Beverages, Other Types Of Food, Medical Devices, Etc. |
| Automatic | Automatic |
| Voltage | 220V/380V |
| Customized | Customized |
| Material | 304 Stainless Steel |
| Origin | Shandong China |
| Production Capacity | 20 Sets/Month |
| Heating Method | Electricity |
Name |
Content |
DoubleLayerHeatWaterFollowLoopTypeKillFungusPan |

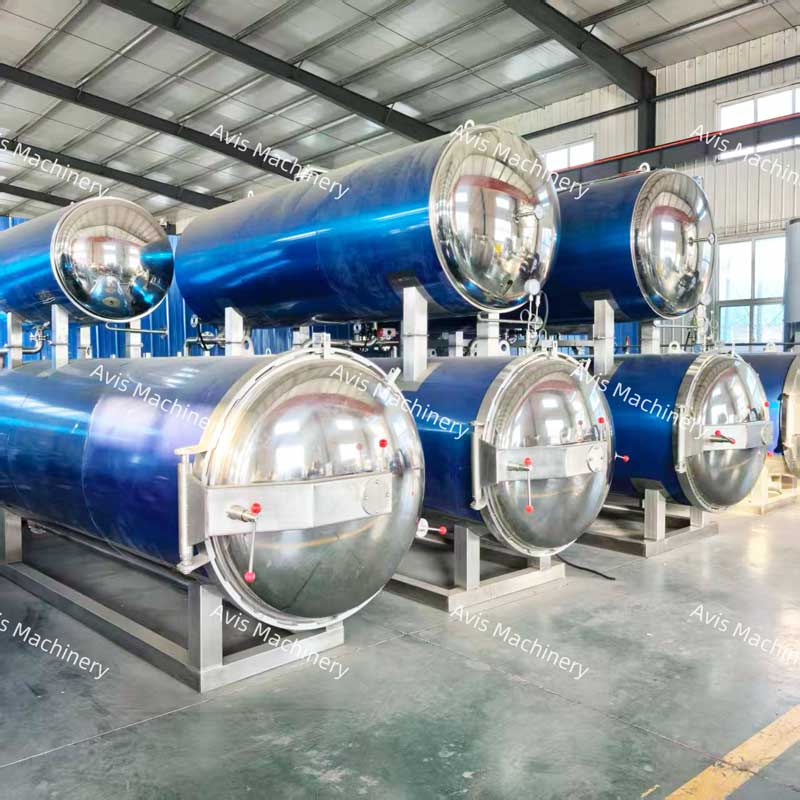

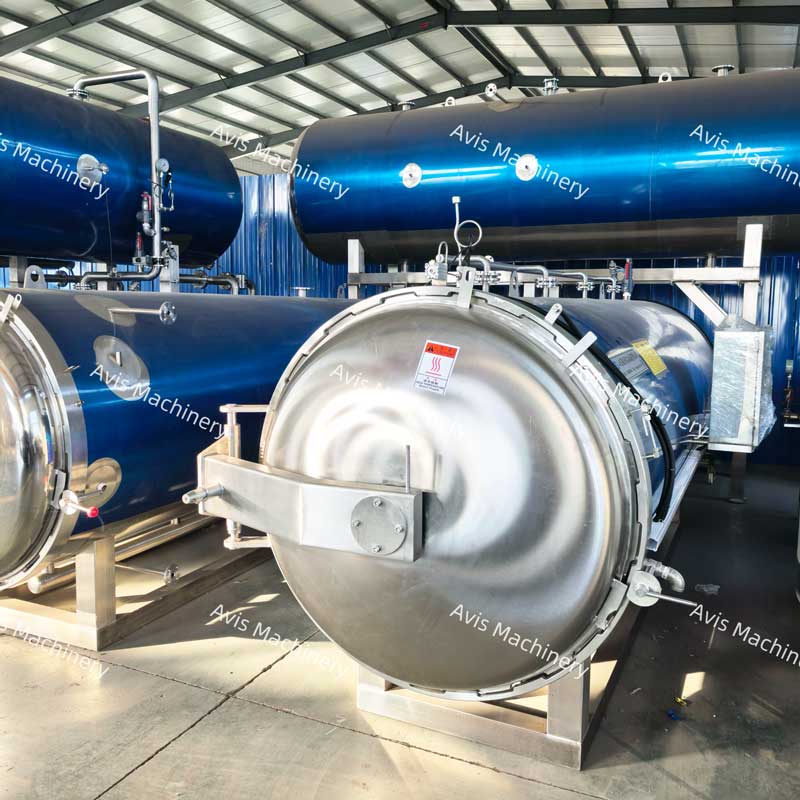

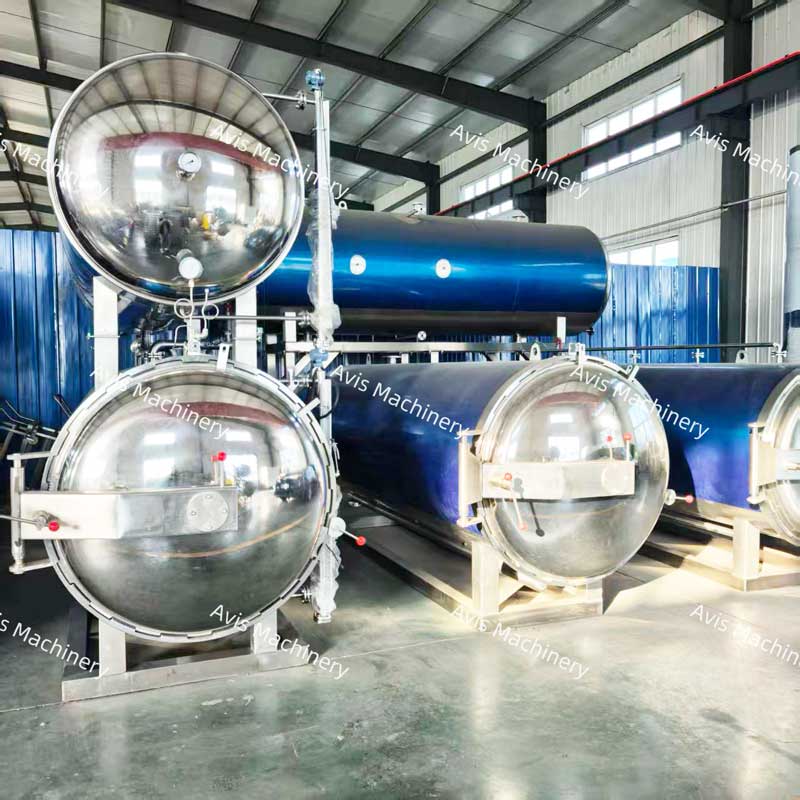

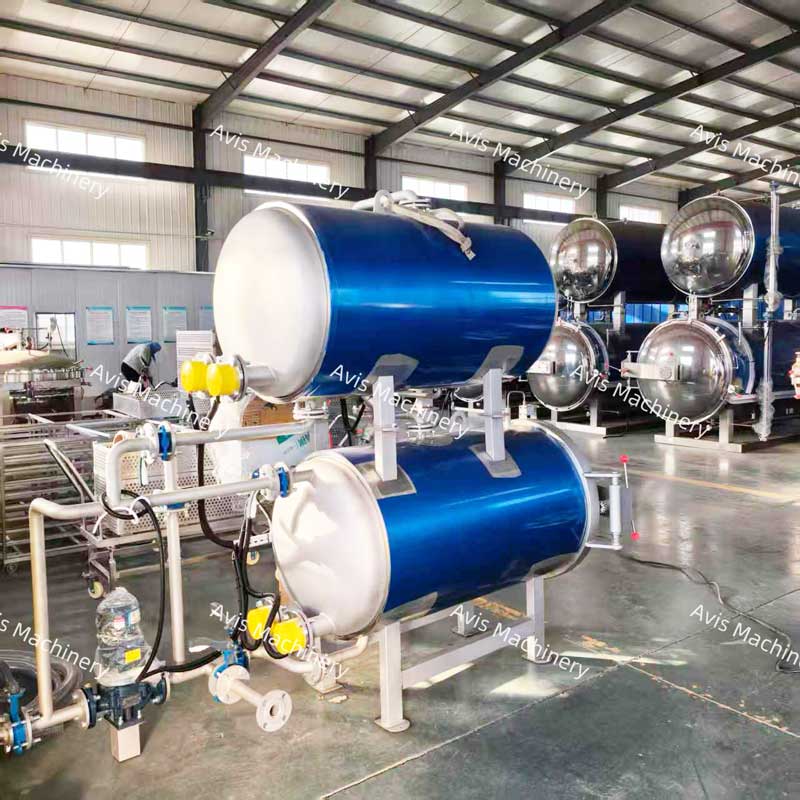

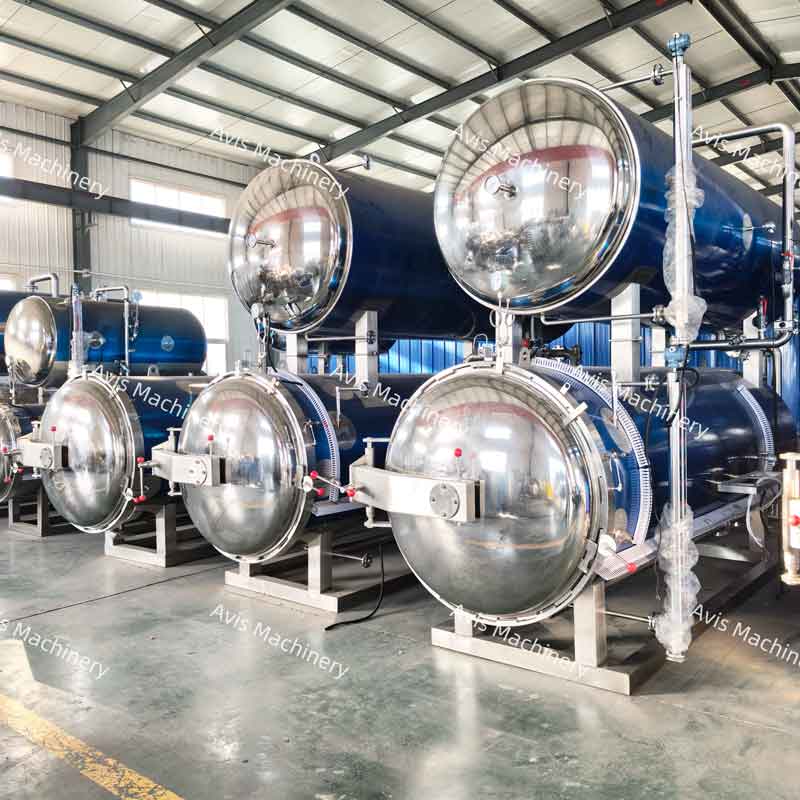

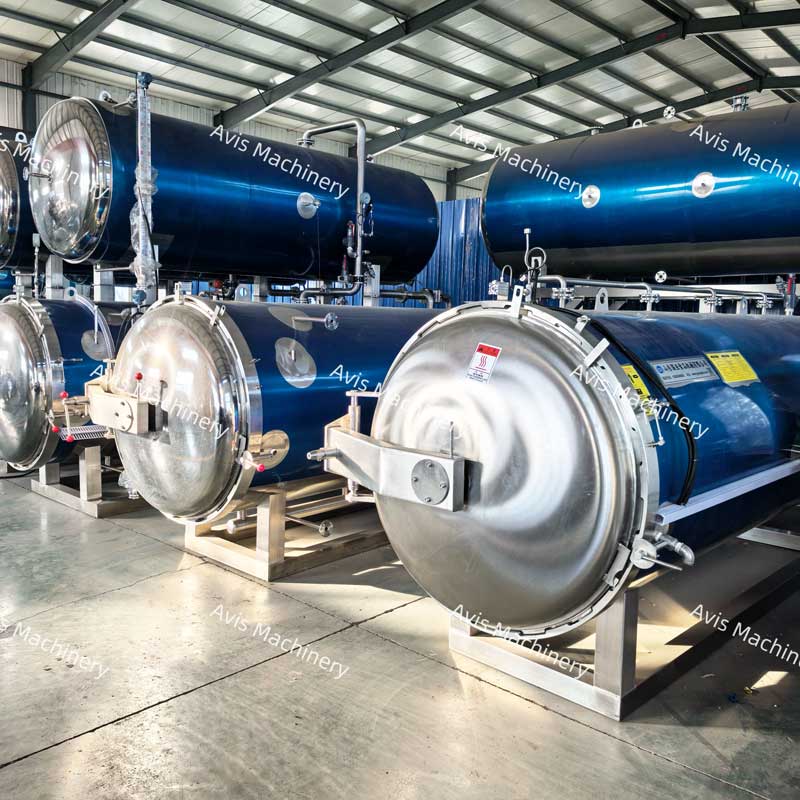

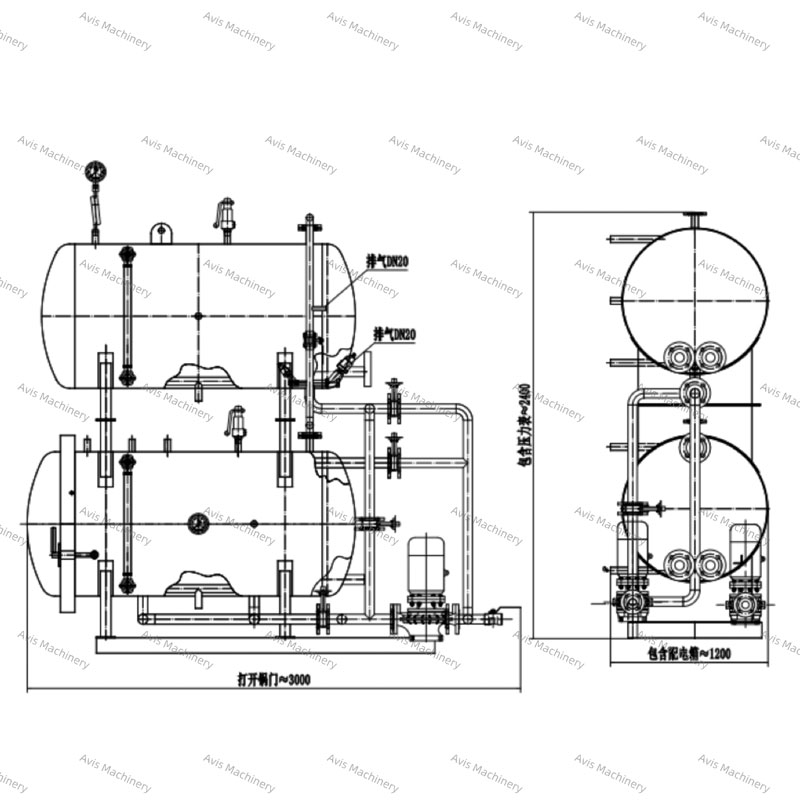

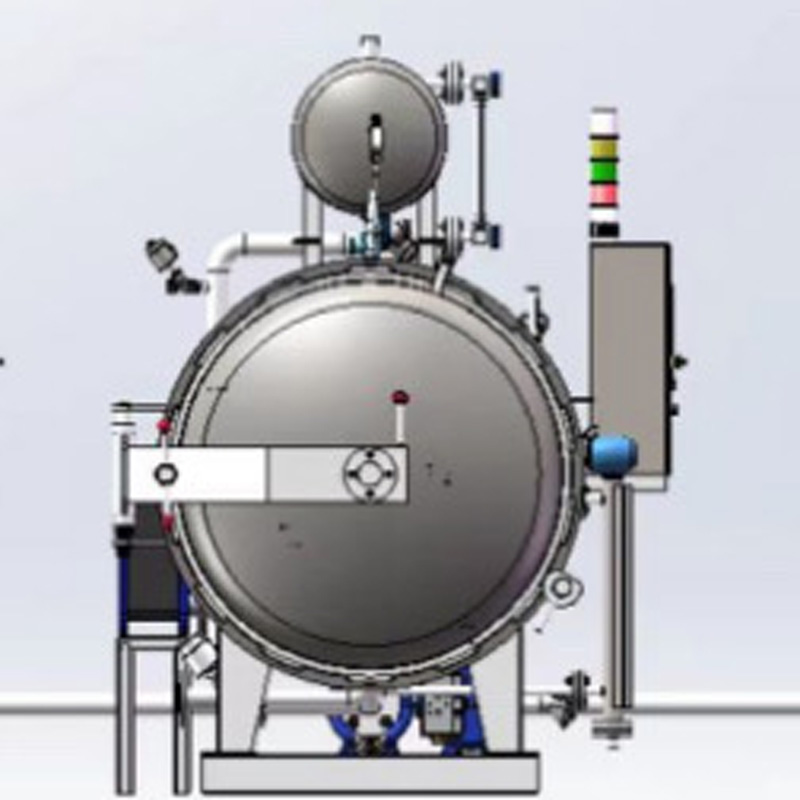

●Overall Structure: Upper And Lower Tanks●Sterilization Method: Water Bath● Heating Method: Steam● Cylinder Dimensions: Sterilizer With An Inner Diameter Of 1000mm, a Straight Cylinder Length Of 2400mm, And a Total Volume Of 2.18m³.The Tank Wall Thickness Is 4 Mm.The Hot Water Tank Has An Inner Diameter Of 1000mm, a Straight Cylinder Length Of 2400mm, And a Total Volume Of 2.18m³.The Tank Wall Thickness Is 4 Mm.● Processing Capacity: Approximately 550 Kg Per Batch● Dimensions: The Device Measures Approximately 4100mm In Length, 1500mm In Width, And 2800mm In Height.●Material: All Components Are Made Of Stainless Steel●Control Method: Computerized Automatic Control● Pressure: Design Pressure 0.35 Mpa, Test Pressure 0.43 Mpa, Maximum Working Pressure 0.30Mpa● Temperature: Maximum Operating Temperature 147°C |
Name |
Model |
Brand |
Place Of Production |
Quantity |
Function |
Pot Body |
φ1000-2200 |
Avis |
China |
1 |
Product Sterilization |
Hot-Water Cylinder |
φ1000-2200 |
Avis |
China |
1 |
Heat Recovery |
Hot Water Tank Manhole |
φ400 |
Avis |
China |
1 |
Hot Water Tank Process Hole |
Gasket Ring |
φ1000 |
Avis |
China |
1 |
Door Seal |
Saddle |
Comes With The Pot |
Avis |
China |
4 |
Bearing |
Name |
Model |
Brand |
Place Of Production |
Quantity |
Function |
Circulating Water Pump |
65-125A |
Lian Tao |
Shanghai |
1 |
Hot Water In Circulating Boiler |
Cooling Water Pump |
65-160 |
Lian Tao |
Shanghai |
1 |
Pour Cold Water Into The Pot. |
Check Valve |
Dn65 |
Wadsworth |
Tanggu |
1 |
Prevent Water Backflow During Injection And Avoid Air Entrainment In The Pump |
Temperature Control Valve |
Dn50 |
Burkert |
Germany |
1 |
Controlled Temperature |
Pneumatic Angle Seat Valve |
Dn25 |
Ming Tian |
Zhejiang |
1 |
Inlet Compressed Air |
Pneumatic Angle Seat Valve |
Dn32 |
Ming Tian |
Zhejiang |
2 |
Exhaust |
Pneumatic Angle Seat Valve |
Dn50 |
Ming Tian |
Zhejiang |
1 |
Air Connection Between Upper And Lower Tanks |
Pneumatic Butterfly Valve |
Dn65 |
Akerson |
Tianjin |
1 |
Enter The Water |
Pneumatic Butterfly Valve |
Dn65 |
Akerson |
Tianjin |
1 |
Recurrence |
Pneumatic Butterfly Valve |
Dn65 |
Akerson |
Tianjin |
2 |
Cool Down |
Pneumatic Butterfly Valve |
Dn65 |
Akerson |
Tianjin |
2 |
Drain Off Water |
Pneumatic Butterfly Valve |
Dn65 |
Akerson |
Tianjin |
1 |
Recycled Hot Water |
Pneumatic Butterfly Valve |
Dn65 |
Akerson |
Tianjin |
1 |
Circulating Water |
Name |
Model |
Brand |
Place Of Production |
Quantity |
Function |
Plc |
S7-200 |
Siemens |
Germany |
1 |
Main Controller Of Sterilizer |
Human-Computer Interface |
Smart1000 |
Siemens |
Germany |
1 |
Enter Commands And Display Work Status |
Pressure Pickup |
0-1Mpa |
Huba |
Switzerland |
2 |
Generate Pressure Signals |
Temperature Sensor |
Pt100 |
Kumao |
Germany |
2 |
Generate Temperature Signal |
Electromagnetic Valve |
Sy5120 |
Yedeke |
Taiwan |
12 |
Control Pneumatic Valve |
Busbar |
Route 18 |
Yedeke |
Taiwan |
1 |
Solenoid Valve Mounting Plate |
Regulatory Complex |
Aw3000 |
Yedeke |
Taiwan |
1 |
Provide Clean And Stable Air Supply For Pneumatic Valves |
Main Switch |
Mld-063Pe |
Chint |
China |
1 |
Main Power Supply On/Off |
Circuit Breaker |
Dz47-63-32A |
Chint |
China |
2 |
Protect The Water Pump Motor From DamageOverload, Short Circuit, Phase Loss. |
Circuit Breaker |
Dz47-63-6A |
Chint |
China |
1 |
Control Protection Circuit |
Ac Contactor |
3210 |
Chint |
China |
2 |
Control Pump Motor |
Switching Mode Power Supply |
Nes-50-24 |
Chint |
China |
1 |
Supply Stable Power To Computers, Controllers, And Other Devices. |
Button Switch |
Lay3 |
Chint |
China |
4 |
Instruction Input |
Electric Fan |
φ100 |
Chint |
China |
1 |
Heat Dissipation Of Control Box |
Midget Relay |
53P |
Chint |
China |
6 |
Switching Of Signal |

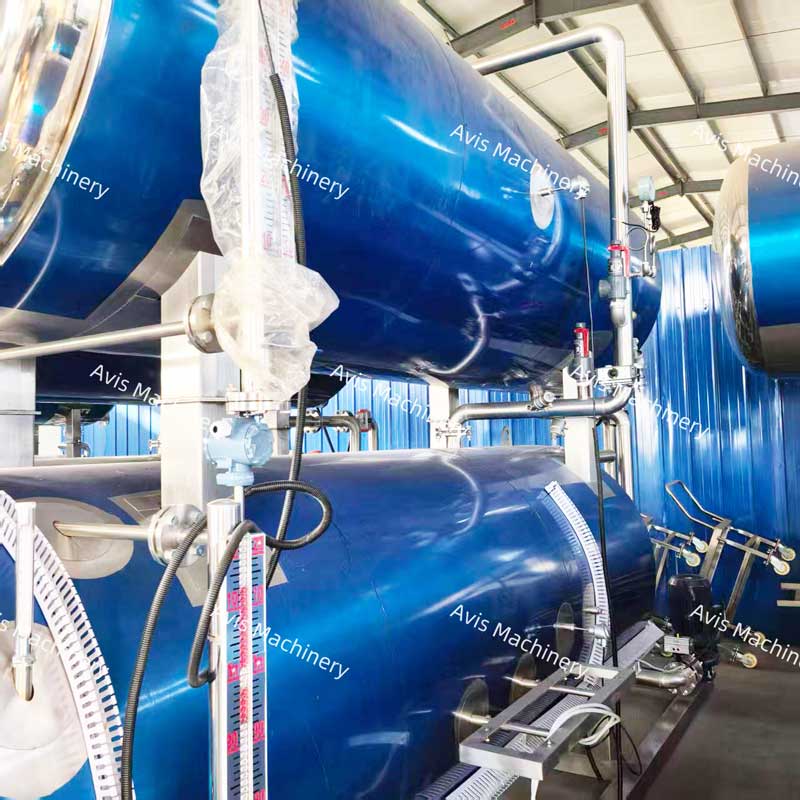

Water Level Sensor |
E2E |
Omron |
China |
4 |
Measure The Water Level In The Pot |
Name |
Model |
Brand |
Place Of Production |
Quantity |
Function |
Quick Open Safety Interlock |
Kkmls-1 |
Junuo |
Juniu |
1 |
Safety Interlocking |
Relief Valve |
Rsfu |
Huawei |
Qingdao |
1 |
Emergency Relief |
Pressure Gage |
100 |
Huawei |
Qingdao |
Display Pressure |
|
Proximity Switch |
Bn-M1816C |
Omron |
Japan |
1 |
The Equipment Can Only Be Started When The Door Is Fully Closed. |
Wave Tube |
φ16 |
Hummel |
Jiaxing |
Protecting Wires From Interference |
|
Alertor |
Jd51 |
Tianyi |
Shanghai |
1 |
Acoustic And Optical Alarm Signal |
Name |
Model |
Quantity |
Function |
Source |
Three-Phase, Four-Wire, 380V,50Hz. |
1 |
Motive Power |
Air Compressor |
Exhalation Volume ≥1 Cubic Meter Per Minute |
1 |
Collect Compressed Air |
Air Tank |
Volume ≥1 Cubic Meter |
1 |
Back Pressure |
Cooling Water Recovery System |
Customize 5T Based On Actual Requirements |
1 |
Recycle Cooling Water |
Pipeline |
Customize Based On Actual Needs |
Exhaust, Water Injection, Drainage, Etc. |
Brief Description Of The Sterilization Autoclave Design Principle:
Direct Heating And Cooling Shorten Sterilization Time, Reducing The Product’s Exposure To High Temperatures For Extended Periods And Preserving Its Taste.
A Large Volume Of Process Water Circulates Rapidly Within The Autoclave, Reaching The Predetermined Sterilization Temperature In The Shortest Possible Time.
The Machine Operates With Low Noise, Creating a Quiet And Comfortable Working Environment.
The Entire Production Process Utilizes Precise Temperature And Pressure Control. Precise Temperature Control Ensures The Product’s Taste And Color While Inhibiting Microbial Regeneration; Perfect Pressure Control Adapts To Changes In Internal Pressure Within The Sterilized Product Packaging, Minimizing Packaging Deformation.
The Process Water Preheating System Ensures Sufficient Heat Input, Enabling Continuous And Rapid Heating Of The Product.
Flanges And End Caps Are Made From The Highest Quality Domestic Materials. End Caps Are Cold-Pressed In One Piece And Subjected To Aging Vibration, Preventing Stress Deformation During Use.
The Stainless Steel Surface Of The Autoclave Body Undergoes a Frosted Finish, Improving Surface Hardness And Corrosion Resistance, Particularly Against Chlorine Added To The Cooling Water.
High-End Machining Equipment And Rigorous Production Management Processes Ensure Top-Tier Overall Machine Quality.
 |
 |
