| Type of Machine | Potato chip frying production line |
| For Food Type | Potato chips |
| Automatic | Fully Automatic |
| Voltage | 380V |
| Customized | Customized |
| Material | 304 Stainless Steel |
| Origin | Shandong China |
| Production Capacity | 100kg-1000kg/H |
| Heating method | Gas or Electricity |
 |
| Item | Picture | Parameters |

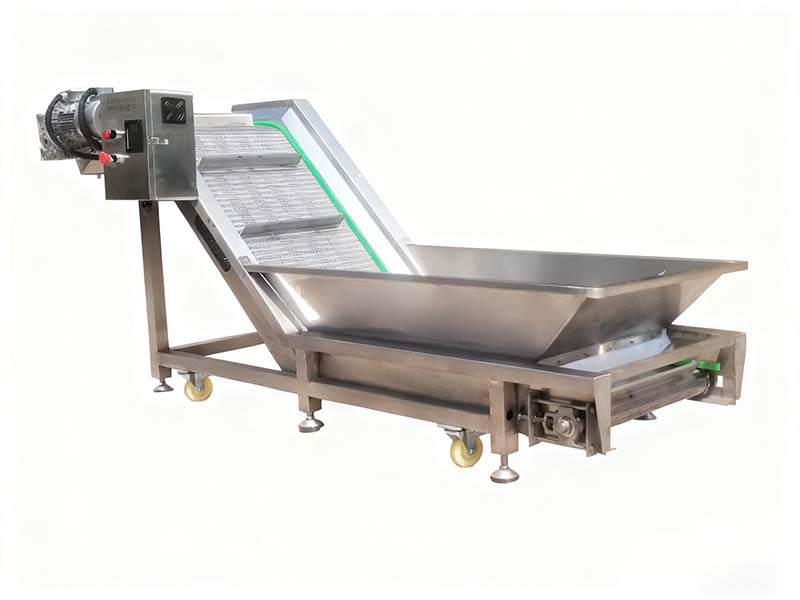

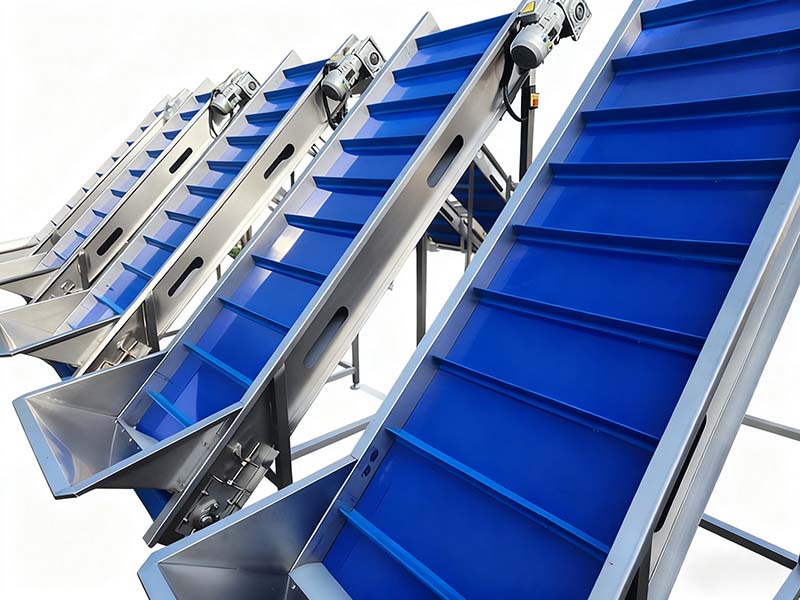

| Hoisting machine |  |
Dimensions:2000*1100*1200mm
Power：0.55kw Net weight：180kg Conveying width：600mm Plate thickness：2mm Voltage:380v,50hz,3phase Speed adjustable SUS304 Stainless Steel
|

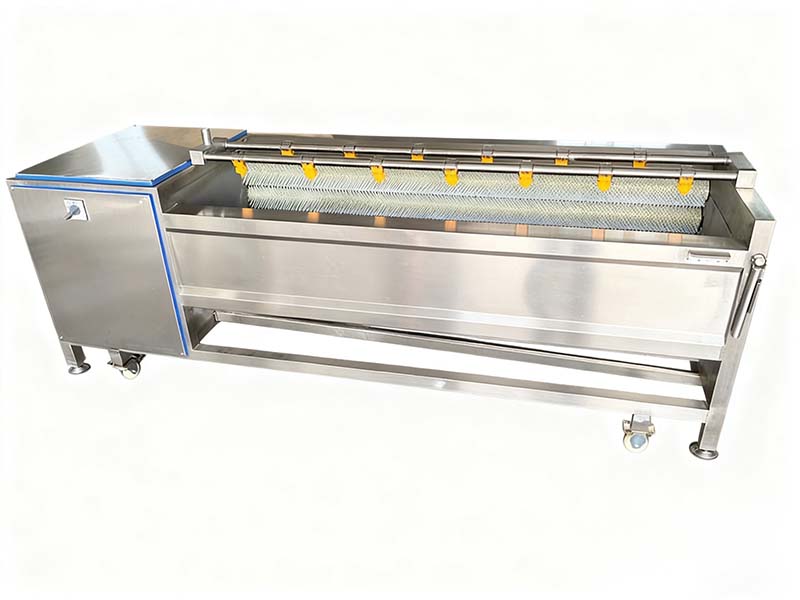

| Washing and peeling machine |  |
Dimensions:2700*950*1200mm
Power：3.55kw Net weight：180kg Roller length：1800mm Plate thickness：4mm Voltage:380v,50hz,3phase speed adjustable SUS304 Stainless Steel |
| Picking Line
|
 |
Dimensions:2000*950*1000mm
Power：0.55kw Net weight：180kg Conveying width：600mm Plate thickness：2mm Voltage:380v,50hz,3phase Speed adjustable SUS304 Stainless Steel |

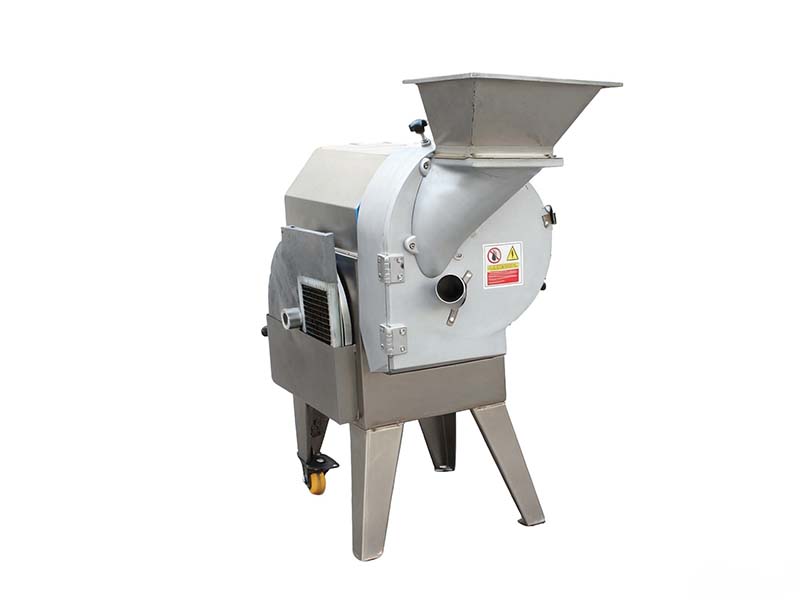

| Potato chips cutting machine |  |
Dimensions:950*800*950mm
Net weight:110kg Power: 1.5kw Slice thickness：2-6mm Voltage:380v,50hz,3phase Speed adjustable SUS304 Stainless Steel |

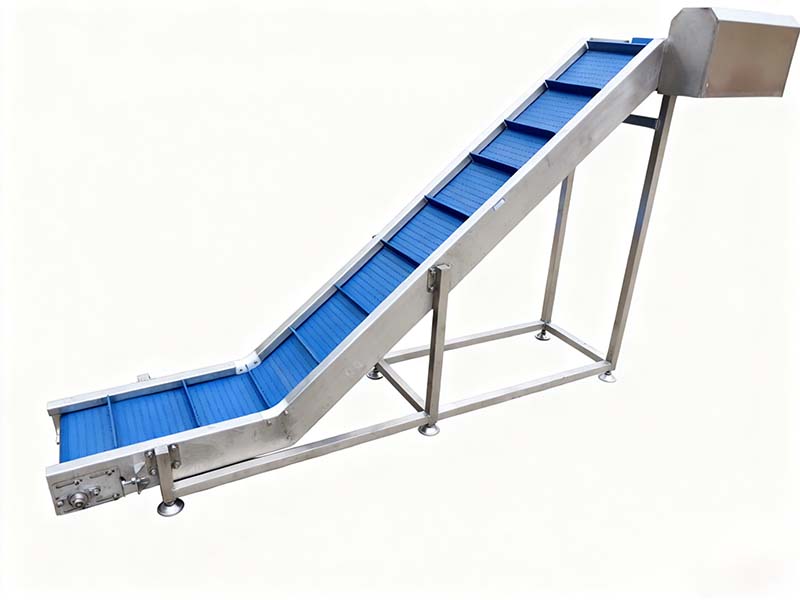

| Hoisting machine |  |
Dimensions:2000*1100*1200mm
Power：0.55kw Net weight：180kg Conveying width：600mm Plate thickness：2mm Voltage:380v,50hz,3phase Speed adjustable SUS304 Stainless Steel |

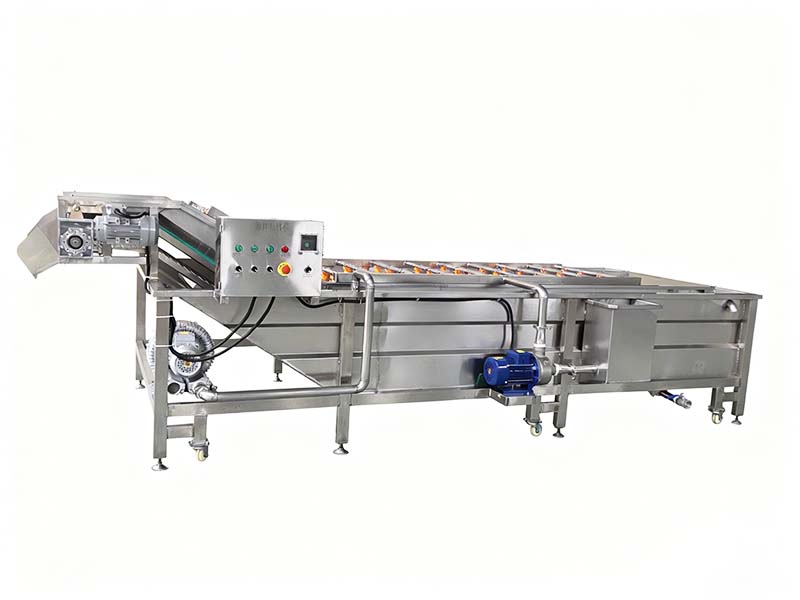

| Washing machine |  |
Dimensions:3000*1480*1250mm
Power：2.6kw Net weight：400kg Conveying width：600mm Plate thickness：2mm Voltage:380v,50hz,3phase Speed adjustable SUS304 Stainless Steel |

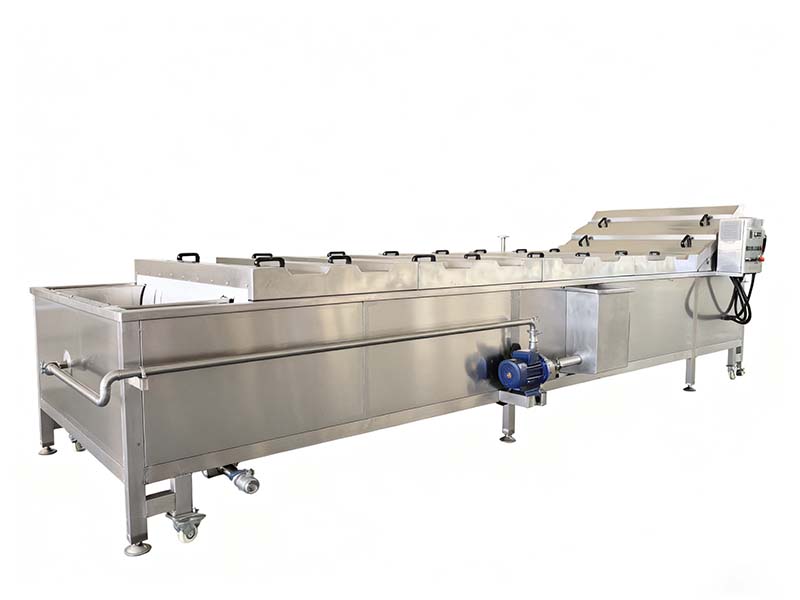

| Blanching machine with electric heating method |  |
Dimensions:3000*1480*1250mm
Power：0.75kw Electric-heating power：60kw Net weight：500kg Conveying width：600mm Plate thickness：2mm Voltage:380v,50hz,3phase Speed adjustable SUS304 Stainless Steel |
| Air drying machine |  |
Dimensions:3000*1250*1450mm
Power：5.25kw Net weight：300kg Fan power：0.75kw Number of fans：6 Conveying width：600mm Plate thickness：2mm Voltage:380v,50hz,3phase Speed adjustable SUS304 Stainless Steel |
| Hoisting machine |  |
Dimensions:2000*1100*1200mm
Power：0.55kw Net weight：180kg Conveying width：600mm Plate thickness：2mm Voltage:380v,50hz,3phase Speed adjustable SUS304 Stainless Steel |

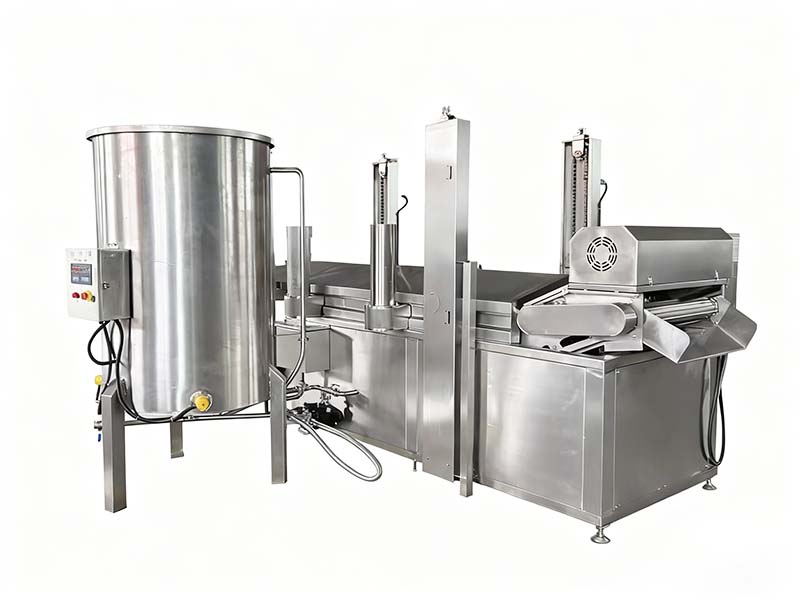

| Frying machine with electric heating method |  |
Dimensions:8000*1650*1900mm
Power：1.5kw Net weight：1500kg Electric-heating power：180kw Conveying width：800mm Plate thickness：5mm Voltage:380v,50hz,3phase Speed adjustable SUS304 Stainless Steel |

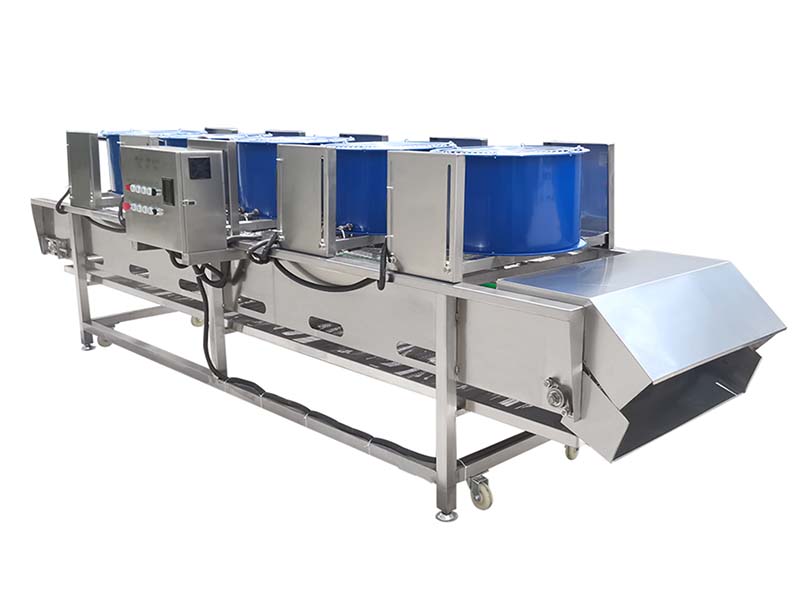

| Deoiling and cooling machine |  |
Dimensions:6000*1250*1450mm
Power：1.5kw Net weight：500kg Fan power：0.75kw Number of fans：7 Conveying width：800mm Plate thickness：2mm Voltage:380v,50hz,3phase Speed adjustable SUS304 Stainless Steel |
| Hoisting machine
|
 |
Dimensions:2000*1100*1200mm
Power：0.55kw Net weight：180kg Conveying width：600mm Plate thickness：2mm Voltage:380v,50hz,3phase Speed adjustable SUS304 Stainless Steel |

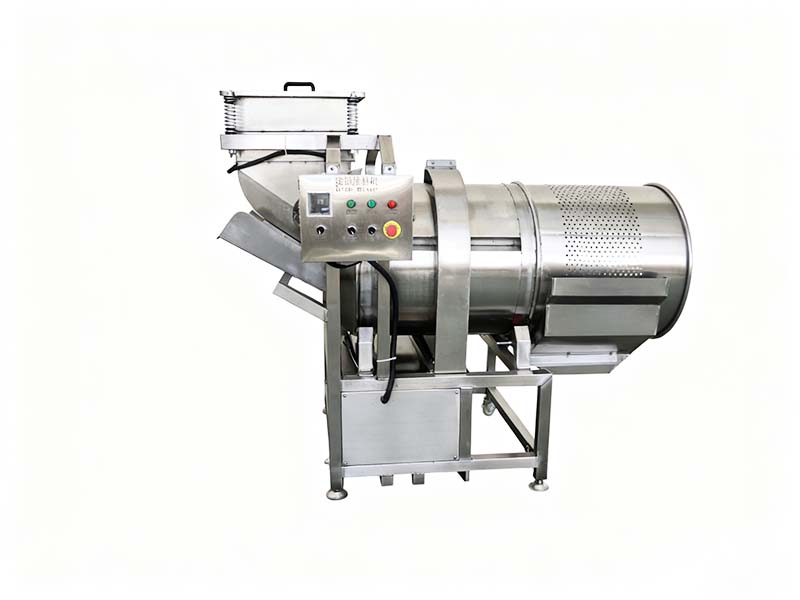

| Seasoning machine |  |
Dimensions：2300*800*1550mm
Drum diameter：700mm Roller length:2000mm Power：1.1kw Plate thickness：2mm Voltage:380v,50hz,3phase Speed adjustable |
You can get a price of this model or send us any question to get any information you would like to know, we will reply to you soonest.
