Model No. |
YZ-600 | Certification |
Ce, Iso9001 |
|
Power Source |
Electric/Gas | Process |
Thermal Processing |
|
Automatic Grade |
Automatic | Application |
Popcorn, Chips, Biscuit, Donut, Fried Chicken，Banana And Plantain Chip Etc. |
|
Customized |
Customized | Material |
304 Stainless Steel |
|
Electrical Equipment
|
Chint/Siemens | Advantages |
Automate, High Efficiency And Energy Saving |
|
Machinery Test Report
|
Provided | Video Outgoing-Inspection |
Provided |
|
Operating Instructions |
Provided | Keyword |
Fryer |
|
Used For |
Food Processing Factory | Reliability |
Strong |
|
Environmental Adaptability |
Strong | Transport Package |
Wooden Crate |
|
Specification |
Customizable | Trademark |
Avis |
|
Origin |
Shandong China | Production Capacity |
100-2000KG/H |
|
Deep Fryer Specifications（Electric Heating） |
|||
|
Size |
4000*1750*1900MM | 5000*1750*1900MM |
6000*1750*1900MM |
|
Electric-Heating Power |
80KW | 120KW |
150KW |
|
Mesh Belt Width |
600~1500MM | 600~1500MM |
600~1500MM |
|
Transmission Power |
1.1KW | 1.1KW |
1.5KW |
|
Increase Power |
1.5KW | 1.5KW |
1.5KW |
|
Material |
304 Stainless Steel |
||
|
Plate Thickness |
4MM |
||
|
Deep Fryer Specifications（Gas Heating） |
||
|
Size |
2200*1200*1300MM |
2700*1200*1300MM |
|
Transmission Power |
0.75KW |
0.75KW |
|
Gas Heating |
100,000 Kilocalories |
200,000 Kilocalories |
|
Material |
304 Stainless Steel |
|
|
Sheet Thickness |
2MM |
2MM |
|
Insulation Thickness |
50MM |
50MM |
|
Automatic Temperature Control |
– |
– |
|
Mesh Belt Width |
400MM |
400MM |
|

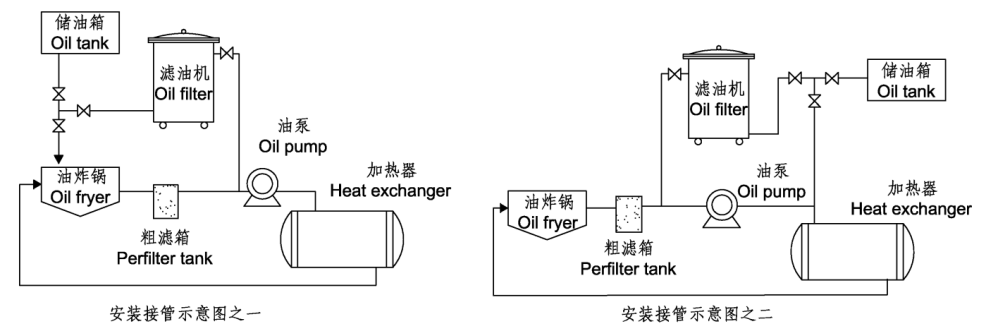

Oil Filter Specifications |
||||
|
Name |
Model | Quantity | Place Of Production |
Material Quality |
|
Main Body |
– | 1 Set | Avis Machinery |
304 |
|
Oil Pump |
1.5Kw | 1 Set | Porto |
– |
|
Gasket Ring |
– | 1 Piece | Avis Machinery |
Silica Gel |
|
Control Circuit Apparatus |
– | 1 Set | Chint |
– |
|
Filter Paper |
– | 100 Copies | – |
– |
|
Valve |
– | Two | – |
– |

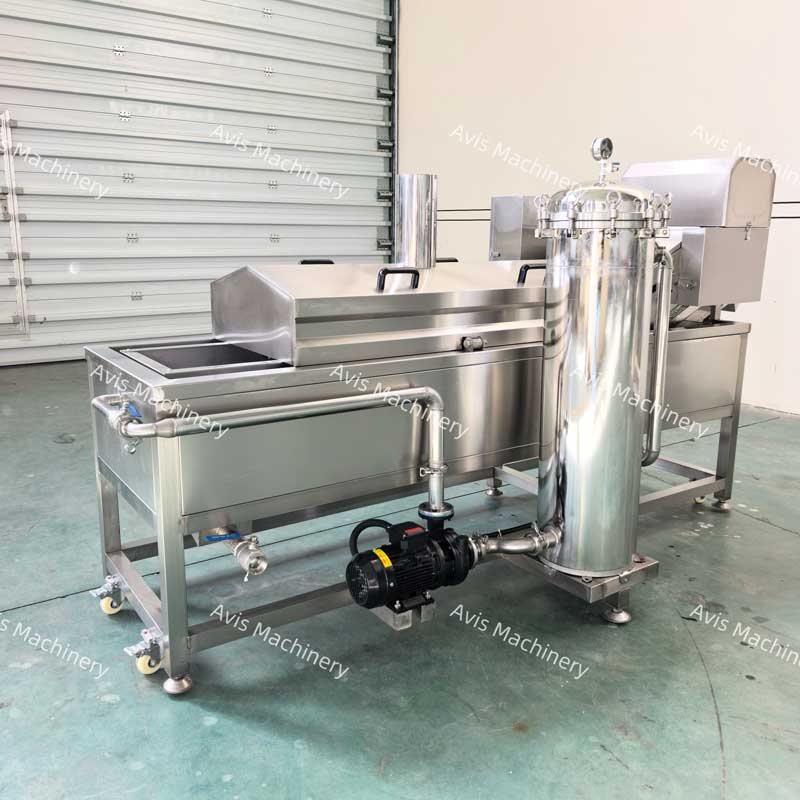

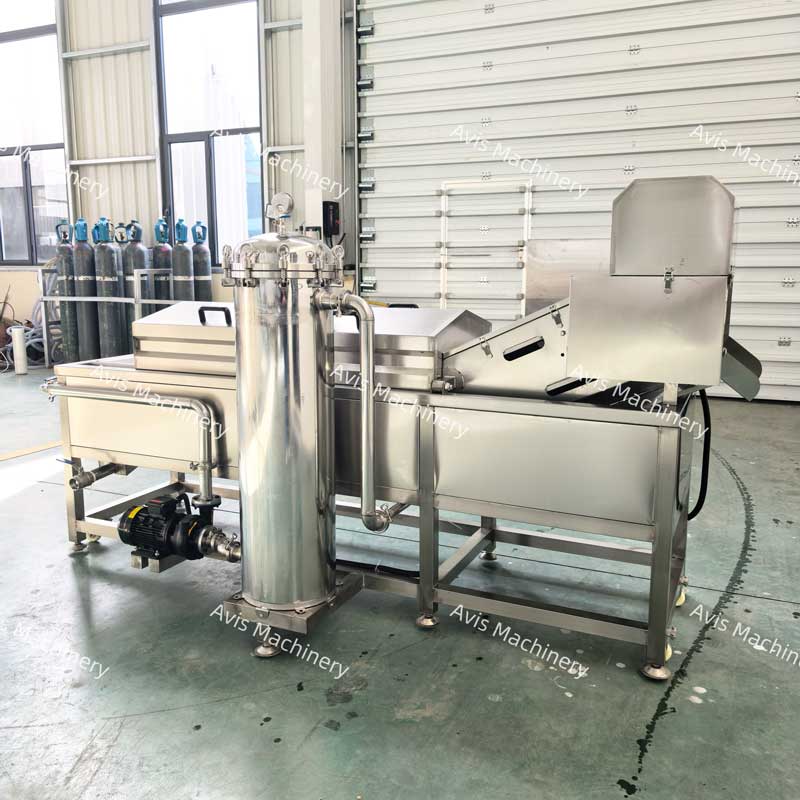

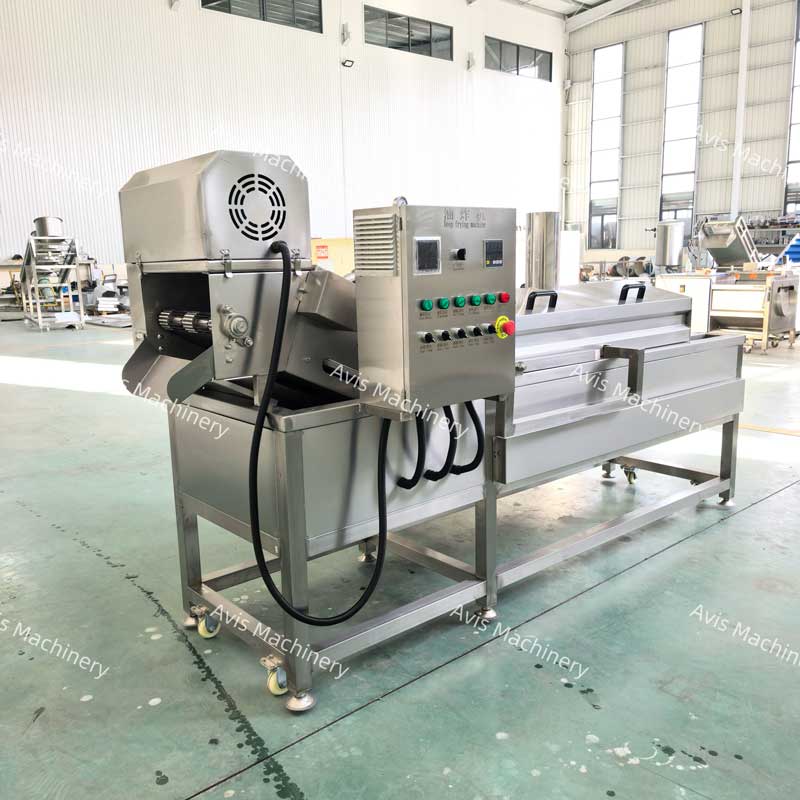

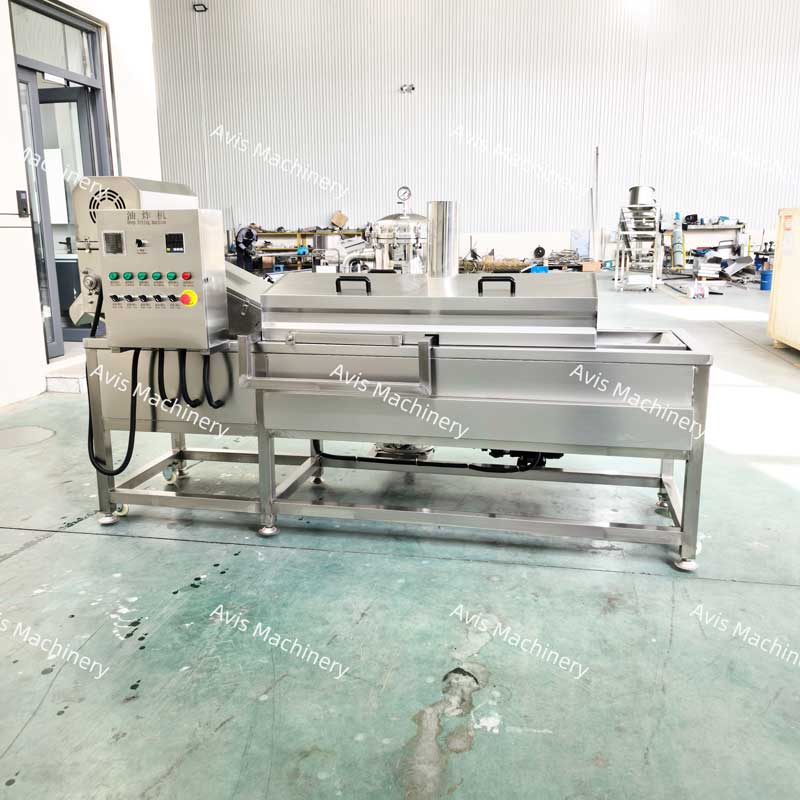

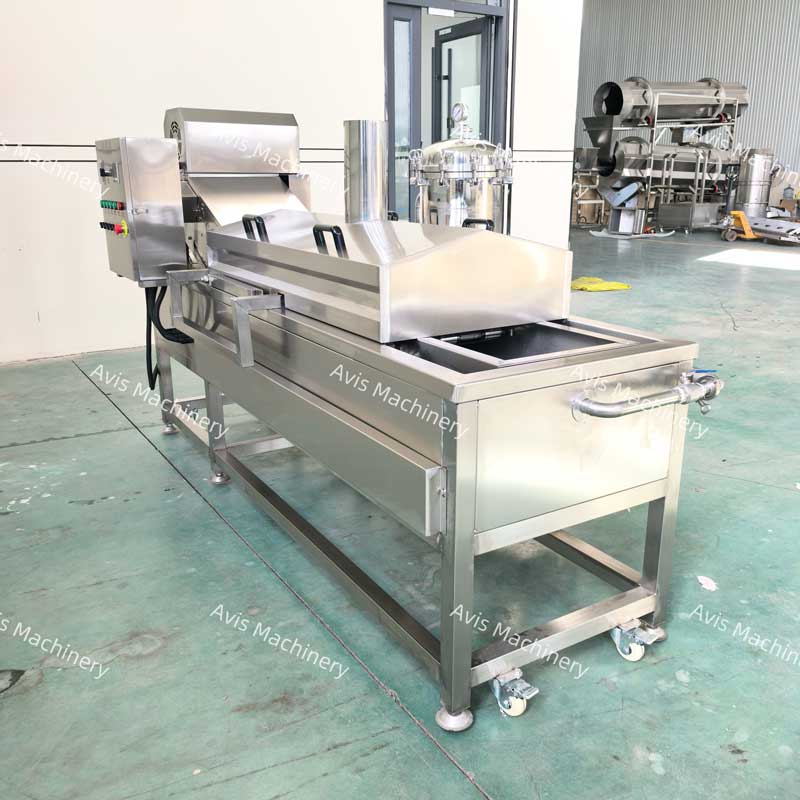

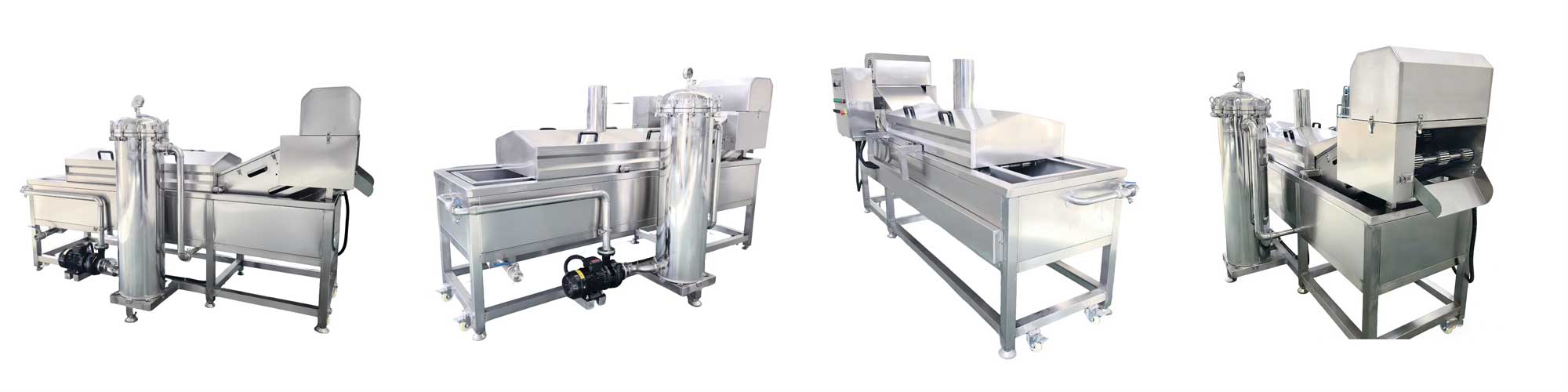

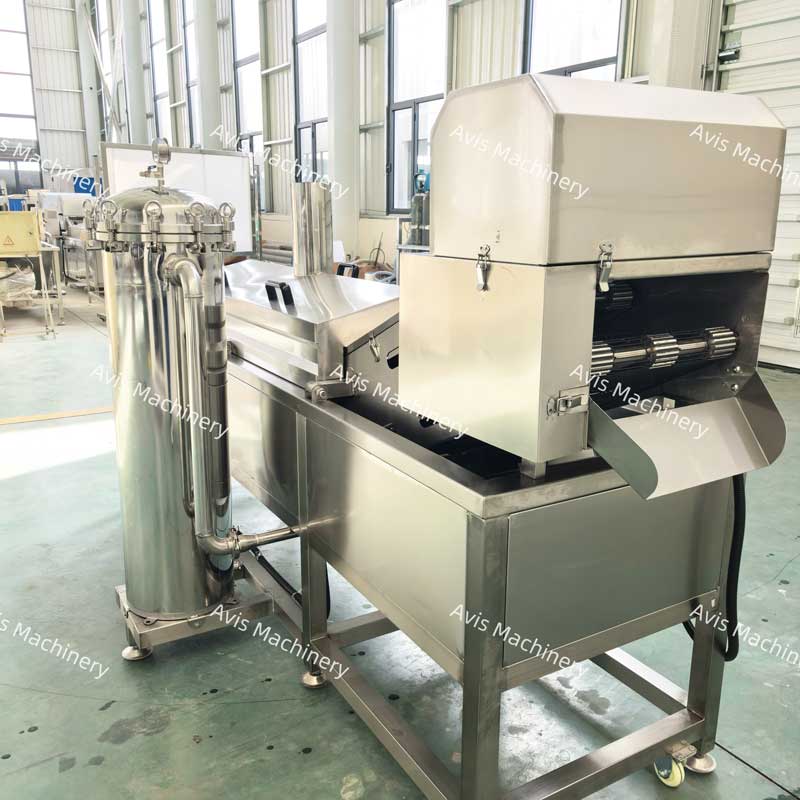

| The Avis Tilting Fryer Features a Precise Temperature Control System And Utilizes Multiple Heating Methods, Including Electric And Gas Heating, To Easily Achieve Large-Capacity Frying And Contactless Unloading. This Reduces Labor Costs And Prevents High-Temperature Burns, Ensuring Even Heating And Consistent Crispness And Appearance Of The Fried Products. The Accompanying Oil Filter Uses High-Precision Filtration Technology To Quickly Separate Oil Residue And Impurities From The Frying Oil, Enabling Oil Recycling And Effectively Extending The Oil’s Lifespan. This Significantly Reduces The Core Cost Of Frying And Prevents Product Discoloration And Deterioration Caused By Oil Residue, Ensuring Consistent Product Quality.
The Entire Machine Is Constructed From 304 Food-Grade Stainless Steel, Making It High-Temperature Resistant, Corrosion-Resistant, And Easy To Clean, Complying With Food Production Hygiene Standards. The Compact Design Integrates Frying And Oil Filtration, Eliminating The Need For Additional Space Planning. It Is Suitable For Various Commercial Settings Such As Fried Chicken Restaurants, Breakfast Shops, Central Kitchens, And Prepared Food Processing Plants. Customizable Machine Dimensions And Oil Filtration Power Are Available To Meet Different Processing Needs. |
